Description

Robust meter for entrance consumption measurement

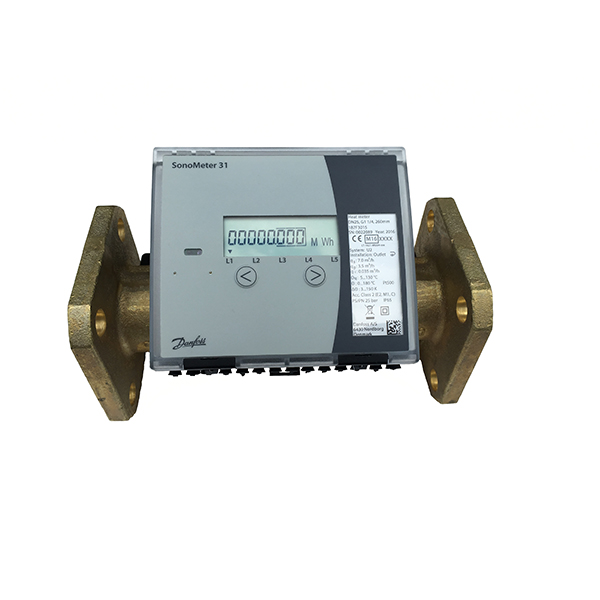

The SonoMeter™ 31 is a compact ultrasonic meter for measuring either heat or cooling consumption at the building entrance or within district energy networks. It is highly resistant towards high temperatures and is build for high-pressure applications. The meter comes both in a mains powered versions (230 V AC) as well as a battery version with up to 10 years lifetime.

The meter is MID class II B+D certified.

Technical data

  • Size | Flow:  DN65 – DN100 | Qp 25 – 60 m3 /h
  • Temperature | Pressure: 5-130°C | PN16/25
  • Types: Compact meter (heat, cool and combined)
  • Approvals: MID class II B+D (heating)
  • Flow sensor cable length: 3.0m | 5.0m | 10.0m
  • Temp. sensor cable length: 3.0m | 5.0m | 10.0m
  • Configuration options:
    • Pulse outputs
    • Additional sensors for flow, pressure and temperature
  • Data logging: 3 years and supports daily logs
  • Calculator: Separable and IP class 65
  • Modular: 1 slot for communication modules+
  • Communication:
    • Wired Mbus
    • Wireless M-Bus (OMS)
    • Pulse in-/output
    • RS 485 modbus RTU
    • 4-20mA analog output
  • Power:
    • Battery D-cell 3.6V
    • Mains unit 230 V AC | 24 VAC

Features and benefits

  • Can be installed in high temperature and high-pressure applications

  • High IP class – lowers the meter damage rate
    and replacement costs

  • Multiple communication options available,
    e.g. for building automation purposes

  • Can be used in glycol applications (not MID certified)
