Description

Material Stainless Steel
Brand Gipfel Engineering
Model No. S50G
Speed up to 2 m/s
Shaft Diameter up to 30 mm to 150 mm
Material Grade SS316
Elastomers Nitrile (NBR) / Viton (FKM) / EPDM / PTFE / TTV / Aflas / Kalrez
Design Pressure up to 5 bars
Design Temperature up to -20O C to +200O C
Hardware S. S. 304 / S. S. 316 / Hastelloy-B & C / Alloy-20 / Titanium
Finishing Chrome Plated
Shape Round
Surface Treatment Galvanized
Minimum Order Quantity 1 Set

Product Description

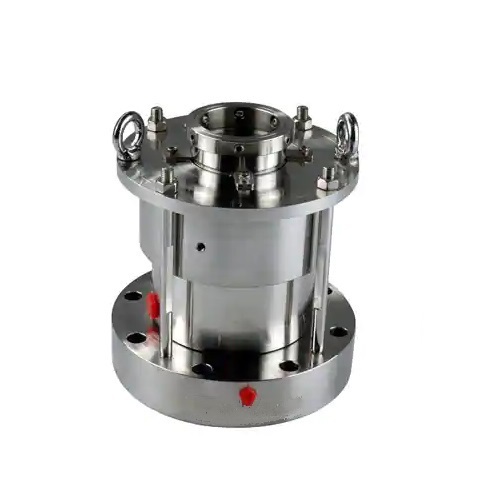

Compact & economical single mechanical seal are designed for top entry drives on glass-lined reaction vessels with a glass-lined agitator shaft. This seal specially designed for any mixed and pressurized liquid in glass lined vessel with top entry agitators where no leakage of highly acidic process gas or fluids to the environment can be tolerated. Complete pre-assembled tested unit ready for installation. This seal show good performance in high vacuum conditions. This seals are available with us in precision design and construction standards.



Features:

  • Top Entry
  • Single Seal
  • Cartridge Design
  • External Mounted
  • Metal Free Contact Parts
  • Rotary Multiple Spring Type
  • Factory Assembled & Tested
  • Hydraulically Balance & Un Balance
  • With Bearing & Cooling Arrangement
  • Independent Of Direction Of Rotation



Specification:

Application Pharmaceutical Industries, Chemical Industries, Petrochemical Industries, Plastic Industries, Pulp & Paper Industries, Hazardous & Toxic Application, Hydrometallurgy & Biotechnology, Agitator, Reactor, Mixer, Etc.
Materials Faces Carbon / Silicon Carbide / Tungsten Carbide
Elastomers Nitrile (NBR) / Viton (FKM) / EPDM / PTFE / TTV / Aflas / Kalrez
Hardware S. S. 304 / S. S. 316 / Hastelloy-B & C / Alloy-20 / Titanium
Operating Limits Size up to 30 mm to 150 mm
Pressure up to 5 bars
Temperature up to -20O C to +200O C
Speed up to 2 m/s
