Description

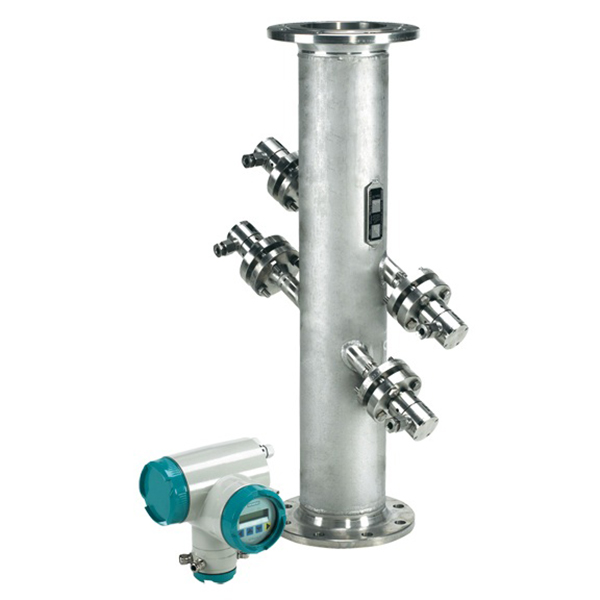

The SITRANS F US SONO 3100/SITRANS FUS060 flowmeter consists of a SITRANS F US SONO 3100 sensor with O-ring or flange transducers depending on the application. The standard version is delivered as a 2-track sensor with or without flanges. Available pipe materials include carbon or stainless steel on request. The SITRANS FUS060 transmitter is engineered for high-performance applications and designed for remote installation in hazardous as well as non-hazardous environments. In addition to the standard outputs, it also offers communication.

The SITRANS F US SONO 3100/SITRANS FUS060 flowmeter consists of a sensor and transmitter. For details and information about the transmitter, see SITRANS FUS060

Application Examples: Cold-, Hot- and Wastewater.

Detail

 Measuring range Qn 28 to 4200 m3/h (depends on size)
 Nominal size From DN 100 to DN 500 (4″ to 20″)
 Accuracy ±0.5% of the flow rate
 Operational pressure Max. 40 bar (Max. 580 psi)
 Operating temperature From -20 to 85 °C (-4 to 185 °F)
 Medium temperature From -20 to 200 °C (-4 to 392 °F)
 Design 2 track
 Material Carbon steel (Stainless steel on request)
 Approval ATEX

Other variants available on request.

Benefits

  • Ideal flowmeter system for challenging applications within the oil flow, distribution and on/offshore industries
  • Easy exchange of integrated transducers without the need for downtime or process shutdown
  • Designed for remote installation in hazardous as well as non-hazardous environments
