Description
Features
• 1% total error band accuracy
• Broad temperature capability
• All-welded pressure construction
• High EMI/RFI rating
• Housing IP67 rating
• Polysilicon thin film sensor
Technical Specifications

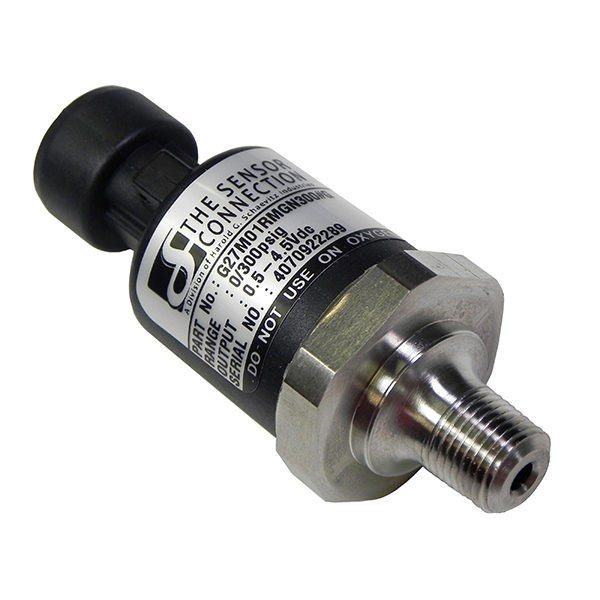

| PAG2 Series Pressure Transducer Specifications: |
| • Polysilicon thin film sensor |
| • Signal Output: Ratiometric, 0.5-4.5 VDC, 3 wire |
| • Excitation Supply: 5.0 VDC ±0.5 VDC |
| • Excitation Supply Current: 3.5 mA |
| • Response Time: Less than 1 msec |
| • Accuracy = ±1% of Span: From -20 to +85ºC (-4 to +185ºF) |
| • Accuracy = ±1.5% of Span: From -40 to -20ºC (-40 to -4ºF) |
| • Accuracy = ±1.5% of Span: From +85 to +125ºC (+185 to +257ºF) |
| • Accuracy calculated as combined effects of temperature, non-linearity, hysteresis, non-repeatabilty, zero offset and span setting errors |
| • Wetted Materials: 304SS pressure connection and 17-4PH SS sensor diaphragm |
| • Housing: 20% Glass Reinforced Nylon, Fire retardant to UL94 V1 |
| • Mating Connector: 3-Pin Metri-Pak 150 Series, p/n: 12065286 |
| • Temperature Compensated -40 to +125°C (-40 to +257°F) |
| • Overpressure: Proof = 200% of FS, Burst = 500% of FS |
| • Vibration: Random vibration (20 g) |
| • Shock: 100gs, 6 ms |
