Description

We cut Non-Asbestos Gaskets from all the major manufacturers materials including, Klinger, Frenzelit, Temac, Gambit, or any of the private branded styles. We can cut your gaskets using waterjet, lasers, or with a cutting plotter as per your request.

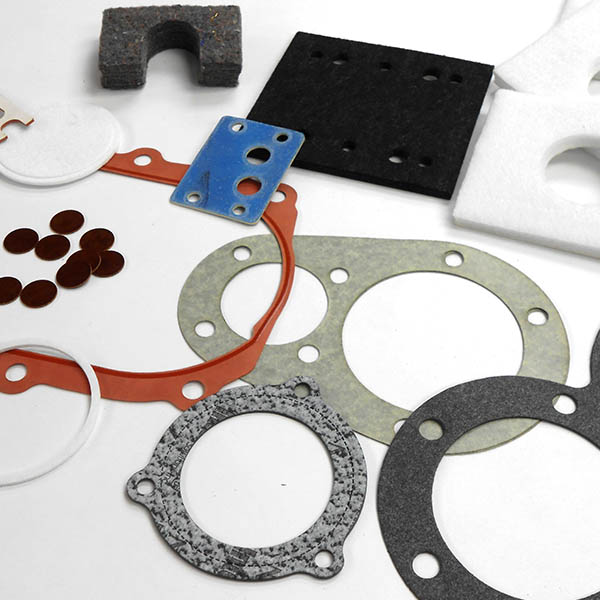

Cut to your dimensions from Non-Asbestos gasket materials.

Most of todays non-asbestos gasket materials contain either Kevlar, an aramid fiber, fiberglass, carbon, graphite or another mineral fiber.

Regardless of the gasket sheets manufacturer, the basics are the filler and the elastomer used.  While no two gasket compounds (or the % of filler) are identical, the basic Elastomers are: NBR (Buna-N), SBR, EPDM or Neoprene. If you examine which gasket material you need (as defined by the application) and select the non-asbestos gasket material with that elastomer you will usually do well.  This method will also allow you to select a competitive brand that will serve your application.  No two materials are identical so caution must always be exercised. In general the common “Binders” are:

  • NBR –  good for oils, gas, mild chemicals and water
  • SBR – good for saturated Steam, mild chemicals inert gas and water
  • Neoprene – good for saturated steam, refrigerants, oils, fuels, mild acids and alkalies and water.
  • EPDM – good for saturated steam, mild chemicals and water

Each material listed regardless of manufacture will indicate the “Binder” which makes cross referencing equal materials a much easier task.  You  should however pay attention to Tensile strength (for pressure resistance) Temperature ratings, and Compression / Recovery ratings.

You must also consider for cut gaskets Size, Temperature, Application, Media, Pressure,  Speed (if dynamic) of your specific application.  If this is for a finished gasket you will also want to consider bolt loads, the size of bolts, the number of bolts, the bolt material and the available torque.
