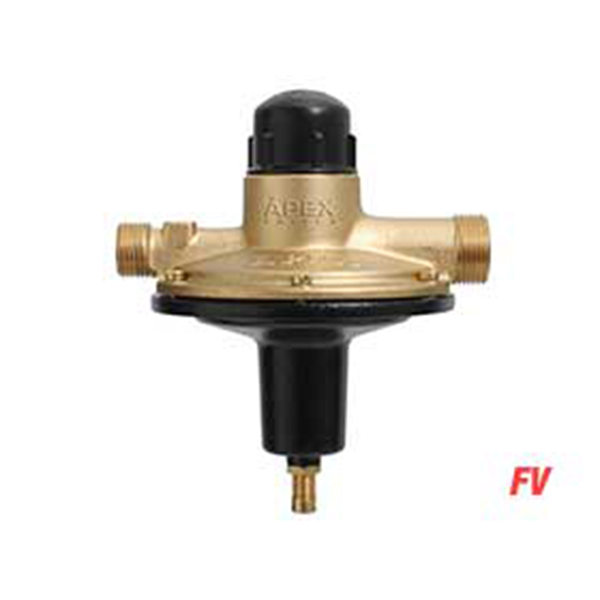

Description

  • Pressure compensated to give constant outlet pressure regardless of inlet pressure.
  • Silicon rubber diaphragm and washer – no heat loop required.
  • Forged, high quality, corrosion resistant DR brass body
  • Machined, assembled and 100% tested in N.Z.
  • One-piece forged brass fork with no water paths – no leaks!

Specifications

Inlet:  15mm, 1/2″ BSP (male) Outlet: 20mm, 3/4″ BSP (male) Length: 138mm

  • Set pressures
    • FV3.7  –  35 kPa [5.5psi]
    • FV7.6  –  65 kPa [10.9psi]
    • FV12.2  –  110 kPa [17.4psi]
  • Adjustable pressure range
    • FV3.7 & FV7.6  –  15 to 100 kPa [2 to 14psi]
    • FV12.2  –  50 to 150 kPa [7 to 22psi]
  • Maximum Inlet Pressure: 2000 kPa [290psi].
  • Maximum Inlet Temperature:
    • Plastic Cap: 40˚C
    • Brass Cap: 80˚C – hot water valve
