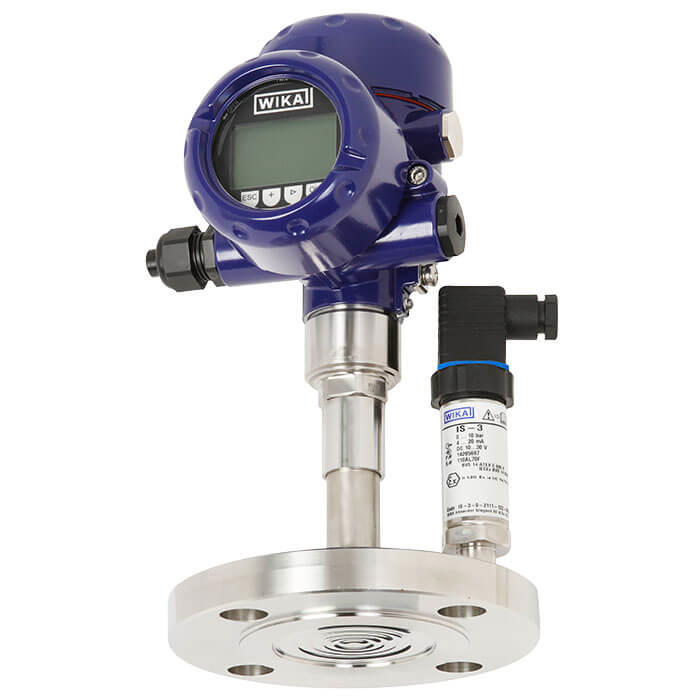

Diaphragm monitoring system with flange connection

For the chemical and petrochemical industries.


    • Chemical/petrochemical industry, oil/gas industries
    • For applications with hydrofluoric acid content
    • For Ex applications
    • For aggressive and critical media
    • Pressure/vacuum measurement on pipelines or vessels

Special features

    • Double-diaphragm system to ensure the separation of the process and the pressure measuring instrument
    • Process connection with flange to provide for direct threaded connection
    • All welded design with flush diaphragm
    • Wetted parts from Hastelloy


The WIKA combination of diaphragm seal, pressure measuring instrument and monitoring element is ideally suited for the harshest measuring tasks. The system can withstand aggressive or hot media.

The patented diaphragm monitoring has been designed specifically for the highest safety requirements in the chemical and petrochemical industries.

On the double-diaphragm system a second, internal diaphragm in the pressure measuring instrument ensures the reliable separation of the environment and the process in the event of a diaphragm rupture. The measuring function of the overall system remains unrestricted, nevertheless it must be replaced immediately.

Mounting of the diaphragm seal to the pressure measuring instrument is made as direct mounting as standard. A fluid inside the system, which is explicitly chosen to suit the particular application, hydraulically transmits the pressure to the pressure measuring instrument.

Diaphragm monitoring systems with the WIKA model 990.27 diaphragm seals are used successfully in applications with hydrofluoric acid content.

The model DMS27 is a patented WIKA development, see e.g. patent DE 19949831, and is subject to further pending patents, e.g. US 2018180505, DE 102016015447, CN 108240885.
